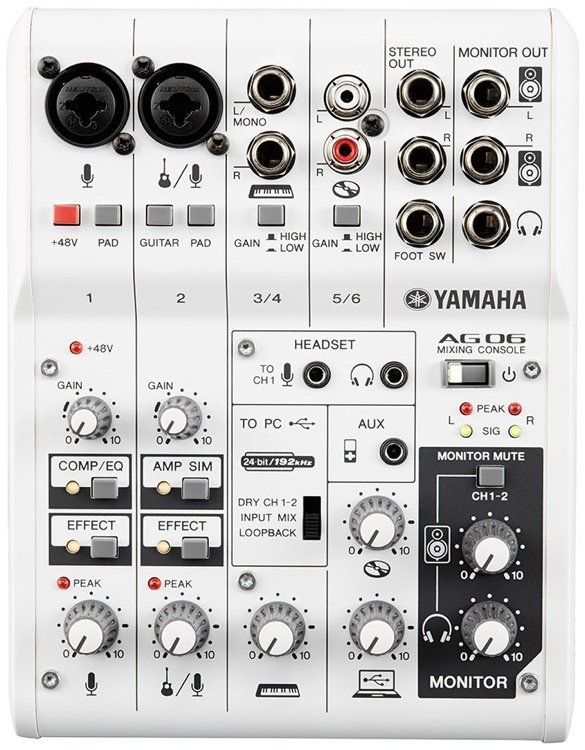

CONSOLA YAMAHA AG06 USB, NUEVA EN CAJA , GARANTIA OFICIAL
CONSOLA YAMAHA AG06 USB, NUEVA EN CAJA , GARANTIA OFICIAL
LOOPBACK function for internet live streaming
The LOOPBACK function enables live broadcasting of all the microphones, instruments and other audio sources along with background music from your PC / Mac or iPad.
Flexible connectivity
Since AG comes equipped with phantom power, you can connect a wide range of microphones including professional-level condenser mics. Andthe AG’s flexible Hi-Z input lets you connect a wide range of instruments like guitars, bass guitars and synthesizers.Equipped with studio-quality D-PRE mic preamps your AG will be able to capture the distinctive nuances of your vocal and instrumental performances with high-resolution sound.
1-TOUCH DSP offers professional sound with a single touch
AG features 1-TOUCH DSP that utilizes Yamaha’s state-of-the-art signal processing technology. COMP/EQ will hone your tone while EFFECT adds ambient reverb, and AMP SIM delivers a classic, warm tube amp sound—all at the touch of a button.
AG DSP Controller allows additional control of DSP settings
Compatible with Windows and MAC, AG DSP Controller gives you additional control of 1-TOUCH DSP parameters such as COMP, EQ, HPF, reverb, and the AMP SIM. EASY mode utilizes a simple intuitive interface while EXPERT mode gives users more detailed control.
High resolution (192 / 24bit) playback and recording
AG’s high-quality design enables 192kHz / 24bit sound that can reproduce even the most subtle nuances of your original recordings. If you useASIO compatible playback software, you can even bypass the internal Kernal mixer and reproduce the original sound faithfully.AG’s 192kHz/24bit sound quality is ideal for capturing the purest reproduction of your analog recordings when archiving your treasured collection.
| I/O | Phantom power | + 48 V | + 48 V |
|---|---|---|---|
| Input Channels | Mono[MIC/LINE] | 2 including HEADSET MIC (Plug-in Power) | 1 including HEADSET MIC (Plug-in Power) |
| Stereo[LINE] | 2 | 1 including Guitar input (Mono) | |
| AUX | 1 | 1 | |
| Output Channels | STEREO OUT | 1 | - |
| MONITOR OUT | 1 | 2 | |
| PHONES | 2 including HEADSET PHONES | 2 including HEADSET PHONES | |
| Bus | Stereo: 1 | Stereo: 1 | |
| Input Channel Function | PAD | 26 dB | 26 dB |
| PEAK LED | LED turns on when the signal reaches 3 dB below clipping level | LED turns on when the signal reaches 3 dB below clipping level | |
| On-board processors | DSP | CH1: COMP / EQ, EFFECT (SPX Reverb) ; CH2: AMP SIM, EFFECT (SPX Reverb) | CH1: COMP / EQ, EFFECT (SPX Reverb) |
| Level Meter | USB Output Level; 2 x 2 point LED meter [PEAK, SIG] | USB Output Level; 2 x 2 point LED meter [PEAK, SIG] | |
| USB | USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit | USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit | |
| Power requirements | DC 5 V, 500 mA | DC 5 V, 500 mA | |
| Power consumption | Max. 2.5 W | Max. 2.5 W | |
| System Requirements | OS | Windows 7 or later / Mac OS X 10.7 or later | Windows 7 or later / Mac OS X 10.7 or later |
| Dimensions | W | 155 mm (6.1") | 129 mm (5.1") |
| H | 63 mm (2.5") | 63 mm (2.5") | |
| D | 202 mm (8.0") | 202 mm (8.0") | |
| Net weight | 1.0 kg (2.2 lbs) | 0.8 kg (1.8 lbs) | |
| Options | Foot Switch: FC5, Mic Stand Adaptor: BMS-10A | Foot Switch: FC5, Mic Stand Adaptor: BMS-10A | |
| Others | Foot Switch: EFFECT Mute on / off, Operating Temperature: 0 to + 40 °C | Foot Switch: EFFECT Mute on / off, Operating Temperature: 0 to + 40 °C | |
